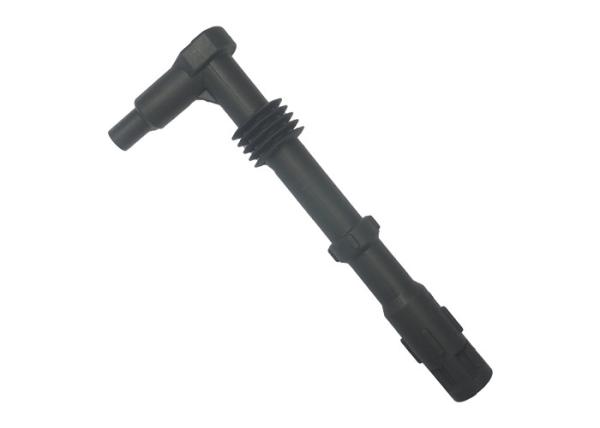

Ignition Coil Connector Spark Plug Connector TY0016C01 Durable Dielectric Properties

Brand Name : TY

Model Number : TY0016C01

Certification : ISO/TS 16949: 2009

Place of Origin : CHINA

MOQ : 1000 PCS

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 200,000 pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Carton size: 470*360*290mm；Single carton volume: 0.049m3；Package quantity: 300Pcs/box； N.W: 26KG；G.W: 27KG

Resistance : 5KΩ±20%

Withstand voltage : ≥30KV

Standard : ISO 6856 / ISO 3808

Customers : BorgWarner, JANMOR etc.

Material : PPS and silicone rubber

Color : Black, or customize

Contact Now

Auto Parts Black Interface Unit with Stable and Durable Performance , Withstand High Temp

Connector Features:

  1. Great heat resistance, cold tolerance, and dielectric properties.
  2. Odorless and nontoxic
  3. Vulcanization molding
  4. No deformation, acid and alkali resistance, and no dilatation.
  5. Excellent uniformity of connector's dimension.
  6. Long life: more than 50,000 km or 3 years.
  7. Can be designed and developed according to customer’s requirements.

Connectors Specifications:

Raw material properties

Shore-A hardness

55±5A

Elongation at break

≥300%

Tear strength

≥15N/mm

Dielectric strength

≥20KV/mm

Tensile strength

≥6N/mm2

Tensile deformation

≤20%

Density

1.17±0.02 g/cm3

Withstand voltage 18KV for 30minutes

NO breakdown

Surface resistance

≥1011Ω

Ageing resistance

155±2.5℃X168h,Without any cracking

Product characteristics

Usage temperature

-20℃-155℃

Breakdown voltage (AC)

≥30KV

Insertion and removal forces

20-70N

Overall length

178±2mm

Resistance

5KΩ±20%

Assembly dimension

Plug assembly depth

36±1mm
Cable entry diameter 6±0.5mm

Assembly dimension: connecting cable

Ignition Coil Connector Spark Plug Connector TY0016C01 Durable Dielectric Properties

Plug entry diameter

10±0.5mm

Assembly dimension: connecting spark plug

Ignition Coil Connector Spark Plug Connector TY0016C01 Durable Dielectric Properties

Applications:

  1. The spark plug connector is used in the ignition system of auto engine, see picture below:
